VINTAGE WARE 65 WARNING LIGHTS
Durite 12-24 Volts DC Amber LED illuminated warning light. The unit is designed for push-fitting and is suitable for a dashboard panel hole drilled to 20mm.
Two 4.8mm blade or spade terminals are connected via the rear.
Snap fits into a 20mm diameter panel hole.
Dual voltage 12V and 24Vdc.
Rated draw: 15mA at 12Vdc.
Pack Quantity: 1 piece.
Additional Information
Terminal 1 - Ground -ve
Terminal 2 - Supply +ve
Specifications
Type LED light indicator
Voltage 12/24 Volts DC
LED Amber
LED Current at 12 Volts 7mA
Terminals 4.8mm Lucar blade
Terminal Material Silver-plated brass
Temperature Range Minus 20 to +85℃
Electric Strength 500Vdc/1000vac
Insulation Resistance ≤100MΩ
Material - Body Nylon
Material - Lens Polycarbonate
Panel Cut-out 20mm
Panel Depth 0.7 to 3.0mm

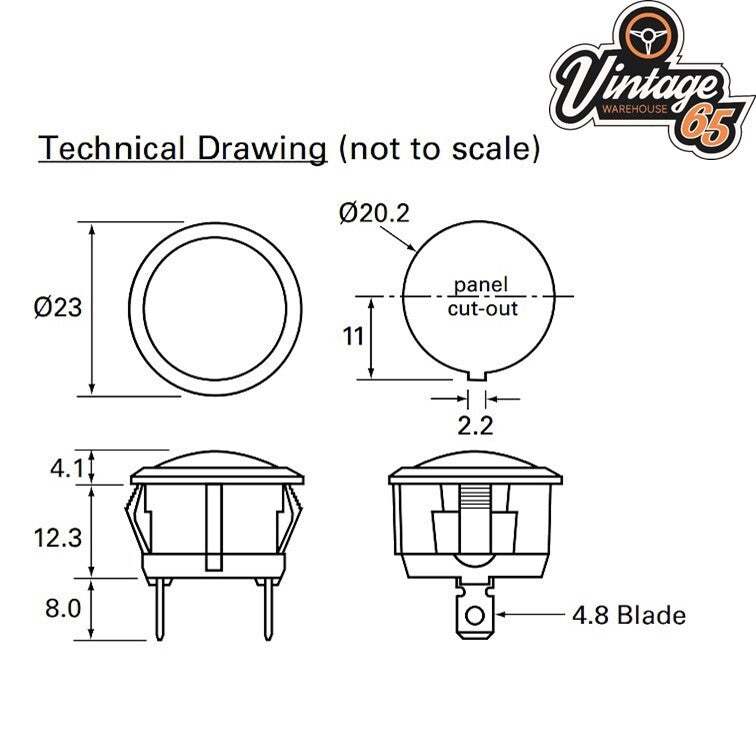

Dimensions Ø23 x h 24.5mm (including terminals)
Weight 10g
Quality Product 30 Day Returns for Peace Of Mind, In Stock & Ready to Ship
