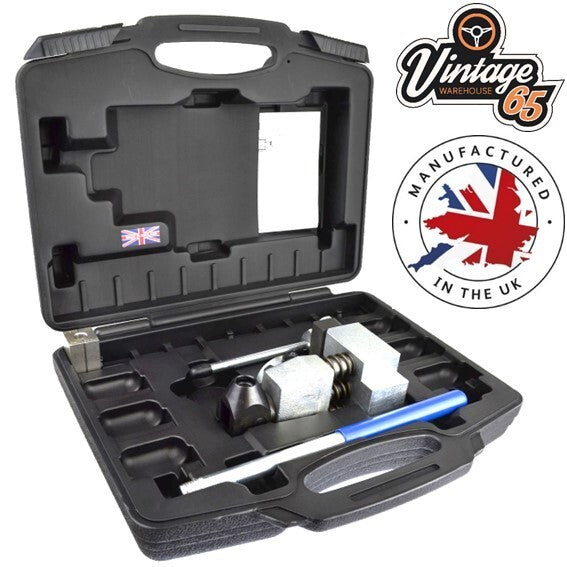

Vintage Warehouse 65 Classic Car Brake Flaring Kit
Professional flaring tool suitable for making brake pipes, hydraulic lines etc...
a very high quality item, made in England.
Includes 3/16" and 4.75mm Punch and Die.

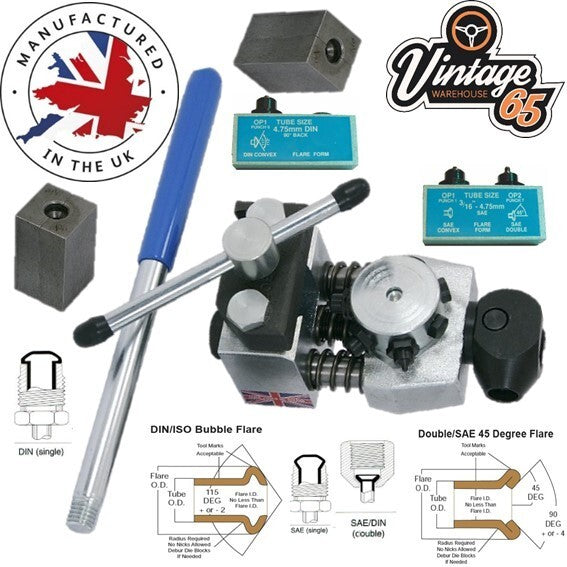

Makes Single and Double SAE flares and Single DIN flares
PLEASE NOTE THIS LISTING IS FOR THE FLARING TOOL ONLY
BRAKE PIPE AND UNIONS ARE SHOWN FOR ILLUSTRATION PURPOSES ONLY
The Tool can be bench mounted or with care and the correct support be used in situ on the vehicle.
Fast Cam Action with spring return.
Pipe is clamped via a screw clamp that grips the pipe over a longer distance than cheaper flaring tools.
Suitable for copper, aluminium, kunnifer and steel tubing and Includes operating instructions.
3/16"SAE & 4.75MM DIN
Designed for use in a vice on a bench to produce OE spec single din & double SAE flares
Can be used on both thin walled aluminium copper and cupro nikel brake pipe
The handle can be screwed onto either side to best suit the available working space where access is restricted
We have lots of repair and renovation kits in our store so please click on any of the images to veiw or message us and we will quote you on an kit you need, we also can make your pipe's to order if you want to keep it simple
